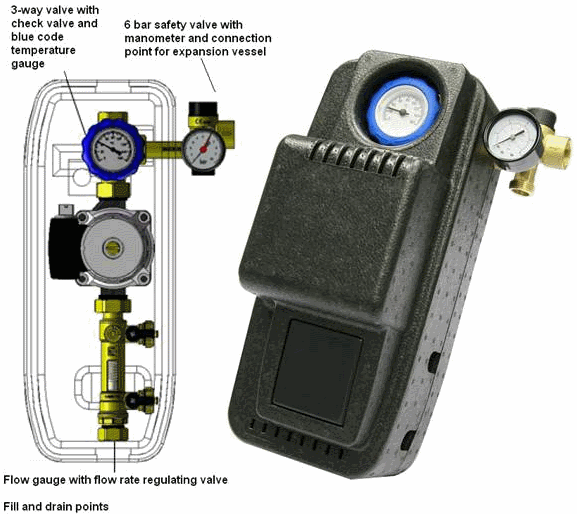

HeatCon Uno pump group
- Single line pumping group for solar systems
- ¾” Male threads with flat surface on each connection so that flexi-pipe can be connected directly to
unit – saves on providing fittings required to adapt PAW
unit
- 3-Way valve with check
valve and blue coded temperature gauge on return line
- 6 bar safety valve with
manometer and connection for expansion vessel
- Wilo 400VDB
pump
- Flow meter with flow
regulator valve
- Fill and drain
points
|
|

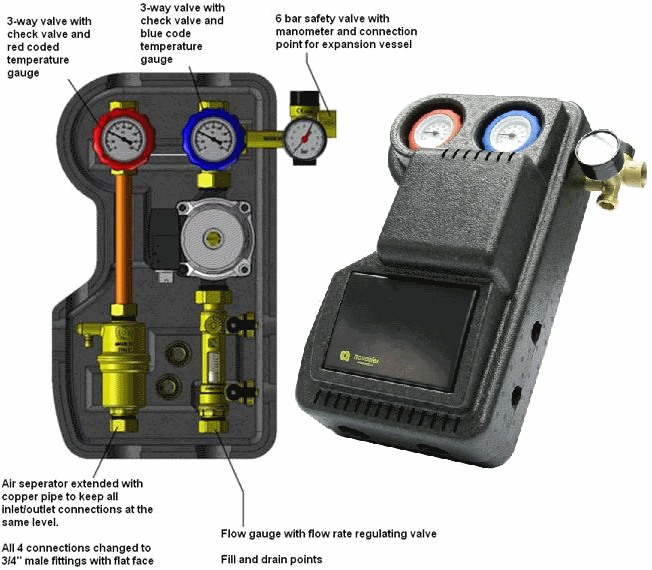

HeatCon Duo pump group
- Twin line pumping group for solar systems
- ¾” Male threads with flat surface on each connection so that flexi-pipe can be connected directly to unit – saves on providing fittings required to adapt PAW unit
- 3-Way valve with check valve and blue coded temperature gauge on return line
- 6 bar safety valve with manometer and connection for expansion vessel
- Wilo 400VDB pump
- Flow meter with flow regulator valve
- Fill and drain points
- 3-Way valve with check valve and red coded temperature gauge on floe line
- Copper extension to
keep all inlet and outlet points at the same level
- Air
separator
|
 |

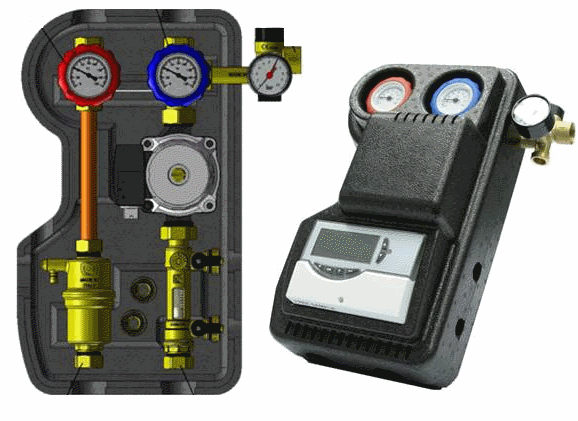

HeatCon Duo Integrated
- Twin line pumping group for solar systems
- Includes integrated HeatCon Pro Controller that has been pre-programmed for 19 different solar configurations.
- Includes 3 x PT1000 sensor probes
- ¾” Male threads with flat surface on each connection so that flexi-pipe can be connected directly to unit – saves on providing fittings required to adapt PAW unit
- 3-Way valve with check valve and blue coded temperature gauge on return line
- 6 bar safety valve with manometer and connection for expansion vessel
- Wilo 400VDB pump
- Flow meter with flow regulator valve
- Fill and drain points
- 3-Way valve with check valve and red coded temperature gauge on floe line
- Copper extension to keep all inlet and outlet points at the same level
- Air separator
|
 |
| |
|
| |
|
