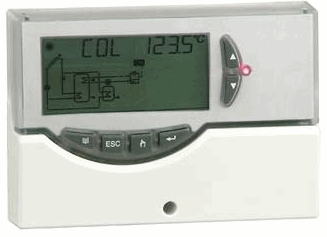

HeatCon Professional Solar Controller

  • Microprocessor based differential controller for solar panel systems
  • 4 x PT1000 temperature inputs available
  • 4 x on/off relay outputs, powered
  • 1 x alarm relay output, volt free
  • Large backlit LCD
  • 19 different solar configurations available
  • Adjustable anti-frost and temperature probe offset
  • Self diagnostic feature with visual and acoustic alarms
  • Password protected parameter configuration
  • Includes 1 x 200°C PT1000 sensor and 2 x 110°C PT1000 sensor
  • 3 year warranty



The HeatCon Professional Controller is a top of the range, microprossesor based differential controller for solar systems. With the possibility to connect 4 x PT1000 sensor inputs and 4 x powered realy outputs the controller is able to manage most solar panel/store configurations out there. The auxillary relay for switching an alarm or sieran on in the event of a malfunction is a unique feature available on this controller.

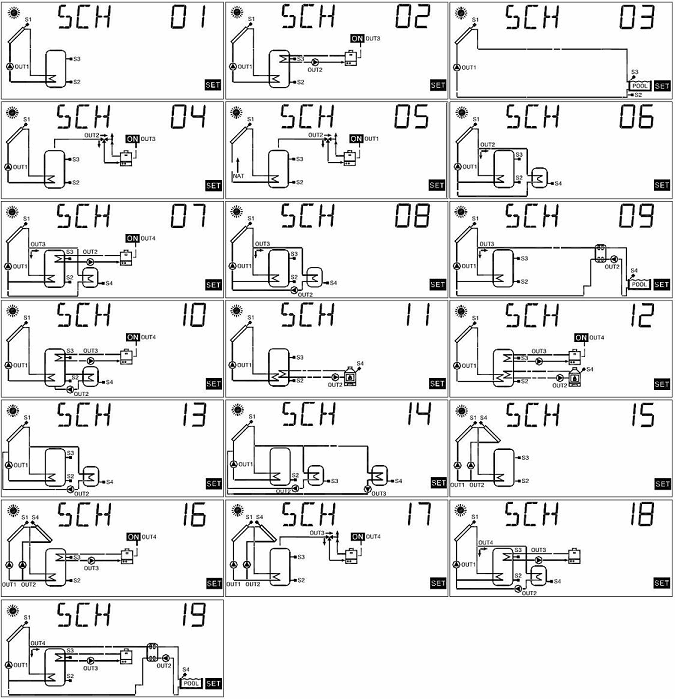

The controller has pre-programmed settings that allow it to be used in 19 different solar system configurations, see below for details of differetn schematics

PT1000 Sensors

Pt1000 probe -50°C .. +200°C B DIN class. Grey silicone cable



Pt1000 probe -50°C .. +110°C B DIN class. Blue silicone cable
