HeatCon Range of Heating and Solar Accessories

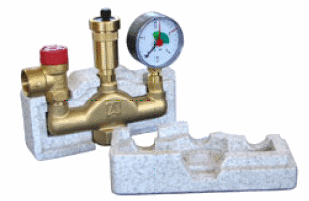

Security unit with 20mm EPS insulation and 1"F connection. Consists of

  • Hot forged brass body
  • Automatic air vent valve, 6 bar, 3/8"
  • Manometer, Dia 63mm, 4 bar, 3/8"
  • Safety valve, 3 bar, 1/2" suitable for boilers up to 560kW's

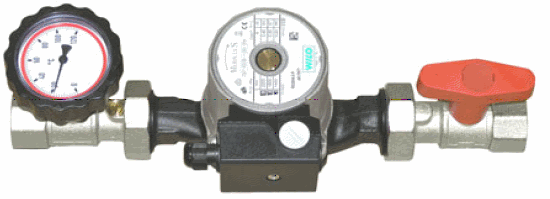

2 Unit Pump Connection Kit

Kit comprises

  • 1 x flanged ball valve (DN20) with insulated T handle.
  • 1 x flanged ball valve (DN20) with red thermometer handle (0° to 120°C)
  • 1 x flanged ball valve (DN20) with blue thermometer handle (0° to 120°C)
  • 3 x 1 1/2" nut and gasket set
  • Pump not included

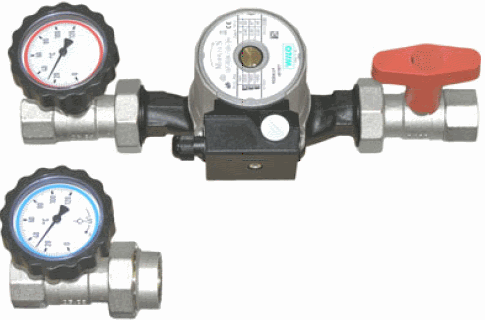

3 Unit Pump Connection Kit

Kit comprises

  • 1 x flanged ball valve (DN20) with insulated T handle.
  • 1 x flanged ball valve (DN20) with red thermometer handle (0° to 120°C)
  • 1 x flanged ball valve (DN20) with blue thermometer handle (0° to 120°C)
  • 3 x 1 1/2" nut and gasket set
  • Pump not included

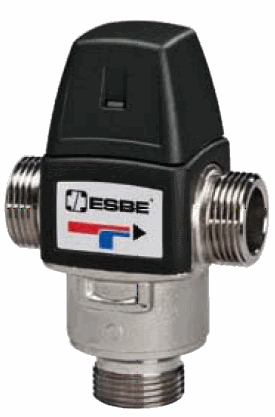

ESBE 1" Anti-Scald Valve

Hot water needs to be heated to 60°C to prevent the proliferation of legionella bacteria. But a temperature this high will scald people. Also, solar system yields and storage capacity can be increased if the solar controller is allowed to bring the tank temperature to 85°C instead of 60°C.



- The ESBE anti-scald valve restricts the flow temperature from the hot water cylinder so that it is always safe to put your hands straight into the flow from a hot tap.

- Thermostatic control

- Set hot water tempertures between 35° and 60°C

- Supplied with 1" to 3/4" reducers

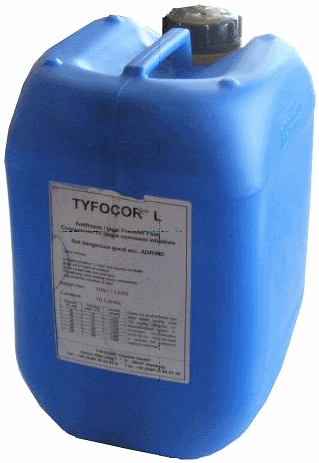

Food grade glycol, heat-transfer fluid

  • Concentrate can be diluted to up to 40%
  • Pre-mix is used straight from the drum
  • Both give frost protection to as low as -40°C
