HeatCon Range of Heating Distribution Accessories

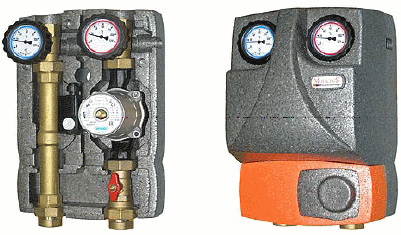

HeatCon 1" Un-Mixed, 2-Way Pump Unit

This unit can be either wall mounted or screwed directly down onto the HeatCon distribution headers. Supply with moluded foam insulation, the pumping unit is ideal for pumping water around heating systems where the max flow temperature is not critical.

Flow line fitted with a Grundfos UPSO 25/65 pump, ball valve with NRV and red ringed temperature gauge.

Return line fitted with ball valve, NRV and blue ringed temperature gauge

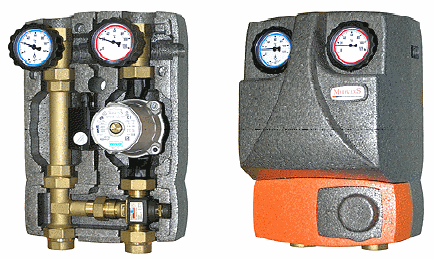

HeatCon 1" Mixed, 2-Way Pump Unit

This unit can be either wall mounted or screwed directly down onto the HeatCon distribution headers. Supply with moluded foam insulation, the pumping unit is fitted with a thermostatically controlled mixing valve on the flow line making it ideal for use with log boilers, wood chip boilers or anything feeding from high temperature buffer tanks.

The thermostatic mixing valve is manually set to the required flow temperaure and then the unit will automatically vary the amount of flow being mixed with the flow to the heating system.

Flow line fitted with a Grundfos UPSO 25/65 pump, ball valve with NRV and red ringed temperature gauge. Flow is mixed using an ESBE thermostatic blending valve.

Return line fitted with ball valve, NRV and blue ringed temperature gauge

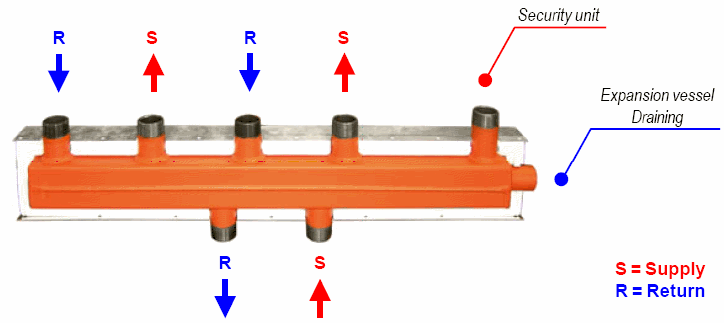

HeatCon Distribution Header 2/3 Zone

Suitable for up to 50kW's output

1" male threaded connection for security unit and side connection for expansion vessel and/or drain point

• Insulation box size (cross section) 110mm x 110mm
• Total length 2 zone 670mm, 3 zone 920mm
• Suitable for fitting pump units (mixed or unmixed)

Pair of brackets to fix insulated distribution header to wall
