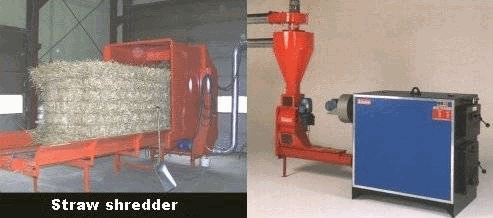

The system consists of a straw shredder with 1, 2 or 3 shredder drums, depending on the size of the system.  On the shredder a straw bale conveyor is coupled up in modules of 3 metres each. The shredder and conveyers are installed inside the main straw bale store.
Shredder and conveyor are available in versions suitable for mini square, medium square, std. round and large square bales.

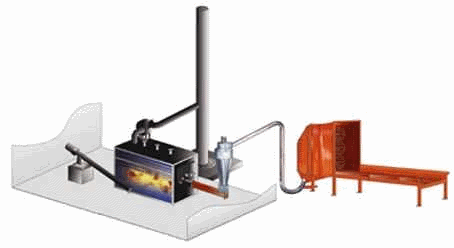

The shredded straw is transported through a closed pipe system directly to the cyclone of the boiler in the stoker room. From the cyclone the straw is transported directly to the boiler where it is efficiently combusted in the burning chamber. The boiler produces hot water to a heating network that links to items such as house heating, grain drying etc.

A smoke suction system efficiently removes the smoke from the boiler to the chimney, and if required, via a smoke cyclone to keep the dust emissions at a minimum - thereby obtaining a cleaner and more environmentally compatible smoke quality.

The ashes are periodically pushed from the combustion chamber to an ash disposal auger. The auger then removes the ashes into an ash container. The system is fully automatically controlled via a PLC-control unit, which at the same time monitors whether the system is constantly performing at its best
