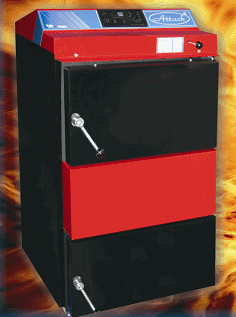

Advantages Of Attack DP 25 Profi Wood Gasification Boiler

Modern design
Burns soft and hard wood in its large combustion chamber of 105, 145 and 185 l
High combustion efficiency – low fuel consumption
Minimum waste
Simple use and cleaning
Automatic boiler switch-off when fuel runs out
Flue ventilator ensures uniform and effective combustion
Possibility of loading large pieces of wood
Equipped with a cooling circuit against the water in the boiler overheating

Description:
The ATTACK DP 25 Profi wood gasifying boiler is designed for the economical and ecological heating of family houses, bungalows, small plants, workshops and similar premises. The specified fuel for the ATTACK DP 25 boiler is dry wood. When the feeding chamber is full, an approx. continuous combustion of 4 to 8 hours is

possible. The "ATTACK DP 25 Profi" wood gasifying boiler is controlled by an electronic regulator which is specifically designed for the temperature control of wood combustion boilers. The ATTACK DP Profi version's strong point compared with the Standard version is in its higher comfort of operation, the possibility of boiler output regulation in order to achieve optimum parameters during the wood combustion. The regulator keeps a constant check on the water temperature in the boiler and the value is shown on the display. At the same time, it controls the waste gas ventilator and central heating pump.

Technical parameters:

Nominal heat output:	10-25 kW
Efficiency:	86 %
Average value of fuel consumption:	7,5 kg/h
Max. operation overpressure:	300(3) kPa (bar)
Water volume:	65 l
Combustion chamber volume:	105 l
Electrical input:	70 W
Voltage / Frequency:	230/50 V/Hz
Min.temperature of return water at operation:	65 °C
Flue gas temperature:	260 °C
Weight:	350 kg
Noise level:	65 dB
Specified chimney draught:	23 Pa
C.H. water connection:	G6/4 Js
Flue connection:	152 mm
Height:	1100 mm
Width:	600 mm
Depth:	1150 mm
